Not “Like the original”, but the original!

• Original look and specs with cutting-edge Schaller technology.
• Exact replacement machine heads for Fender guitars with original dimensions in tried-and-tested Schaller quality.
• Splitted post for solid headstock.

Please note

• The housing cover is the same for the left and right machine heads!
• See the two additional images on the top left.
• These additional images are labeled with “left / links” and “right / right”.
• So these machine heads do not cover the footprint of the original machine heads on all guitar models.

Technical specifications

• Gear ratio: 1:14
• Weight: 22 g per single tuner

Scope of supply

• 6 x press-in bushings
• 12 x mounting screws (M2,2×9,5)

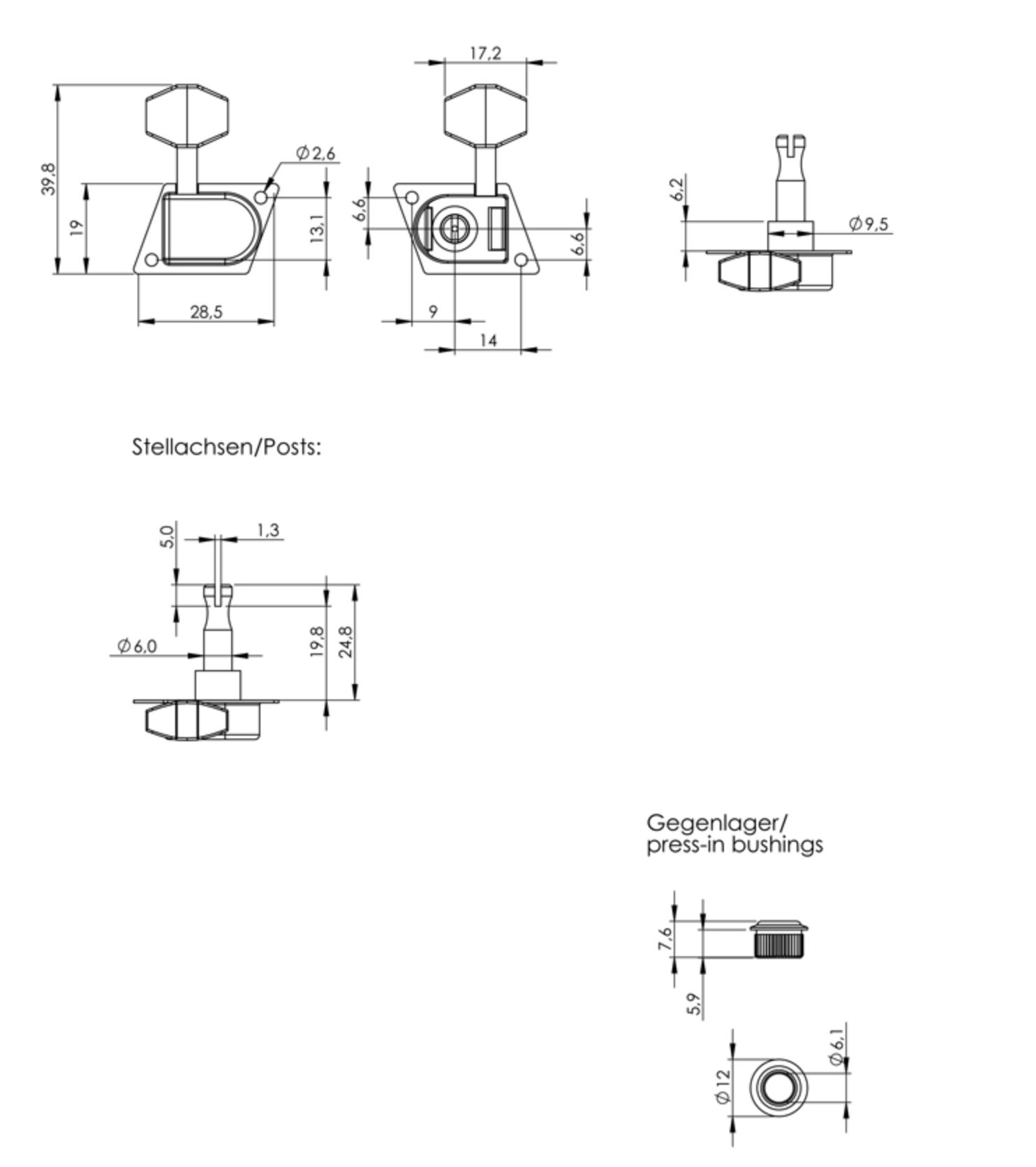

Technical drawings (without engagement)

Our technical drawings show just a sample of buttons and posts. You`ll find the technical details of our posts by using the configurator chapter „posts“.
