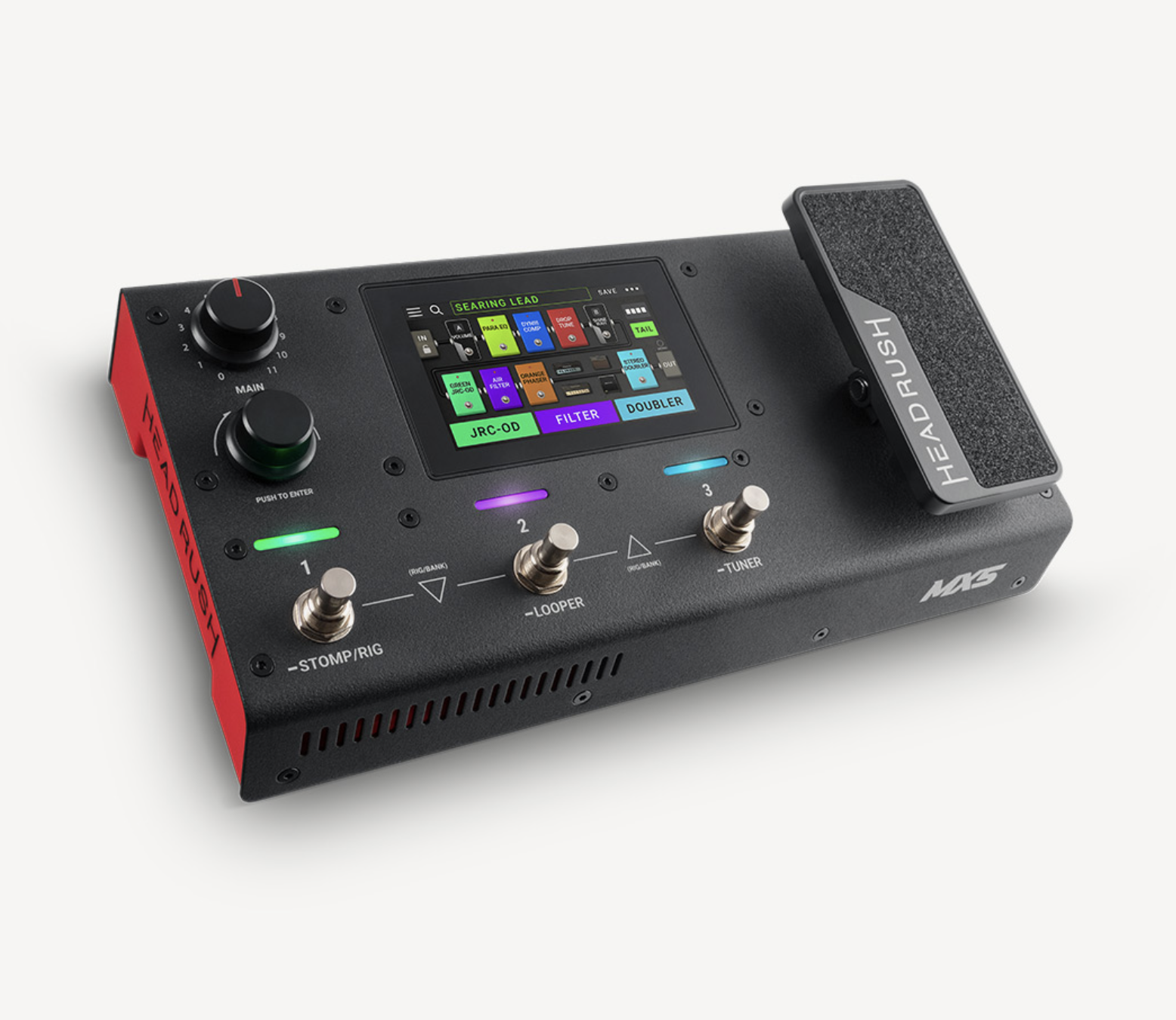

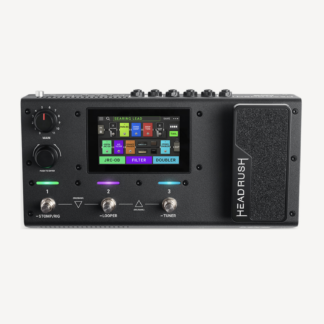

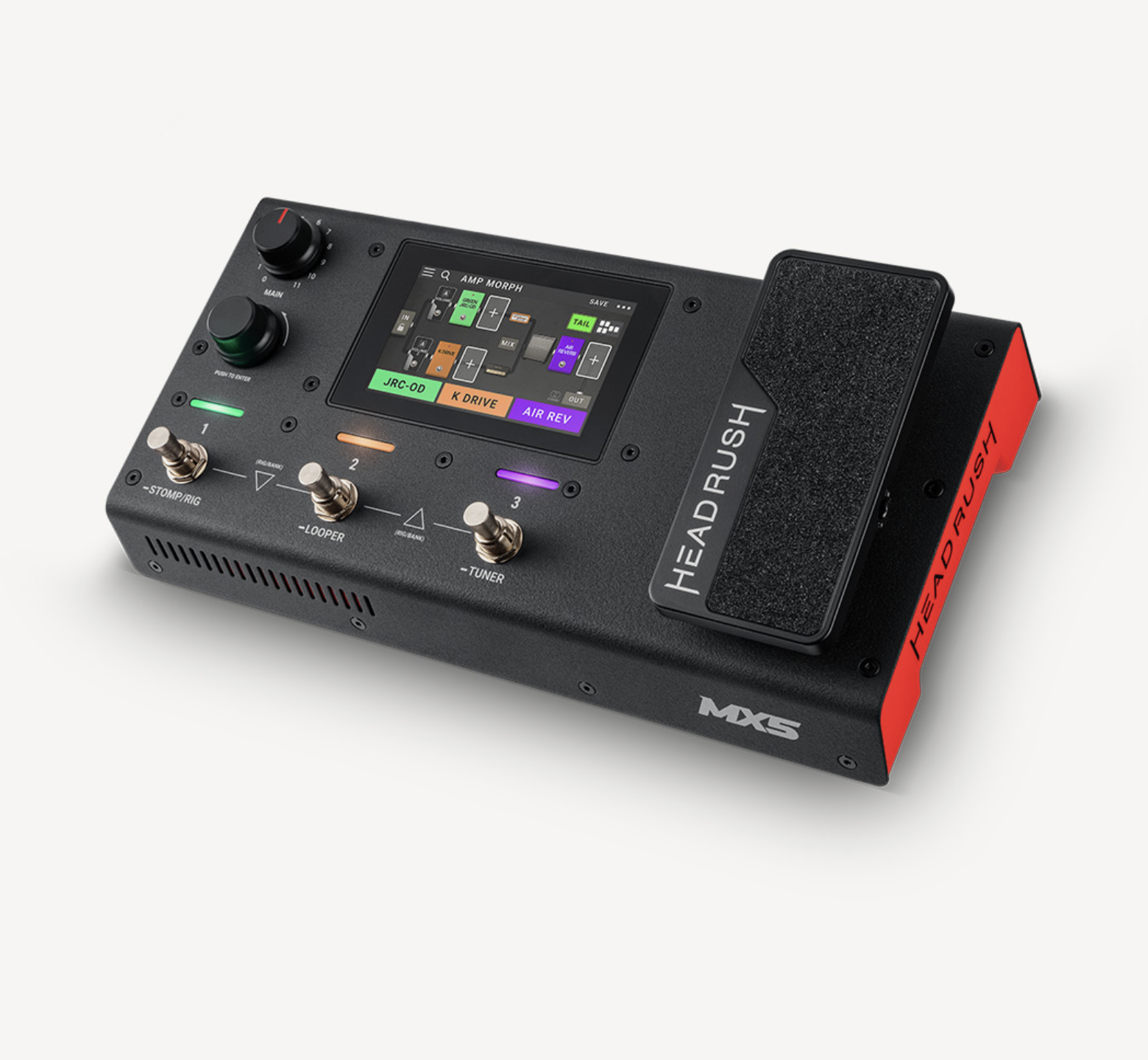

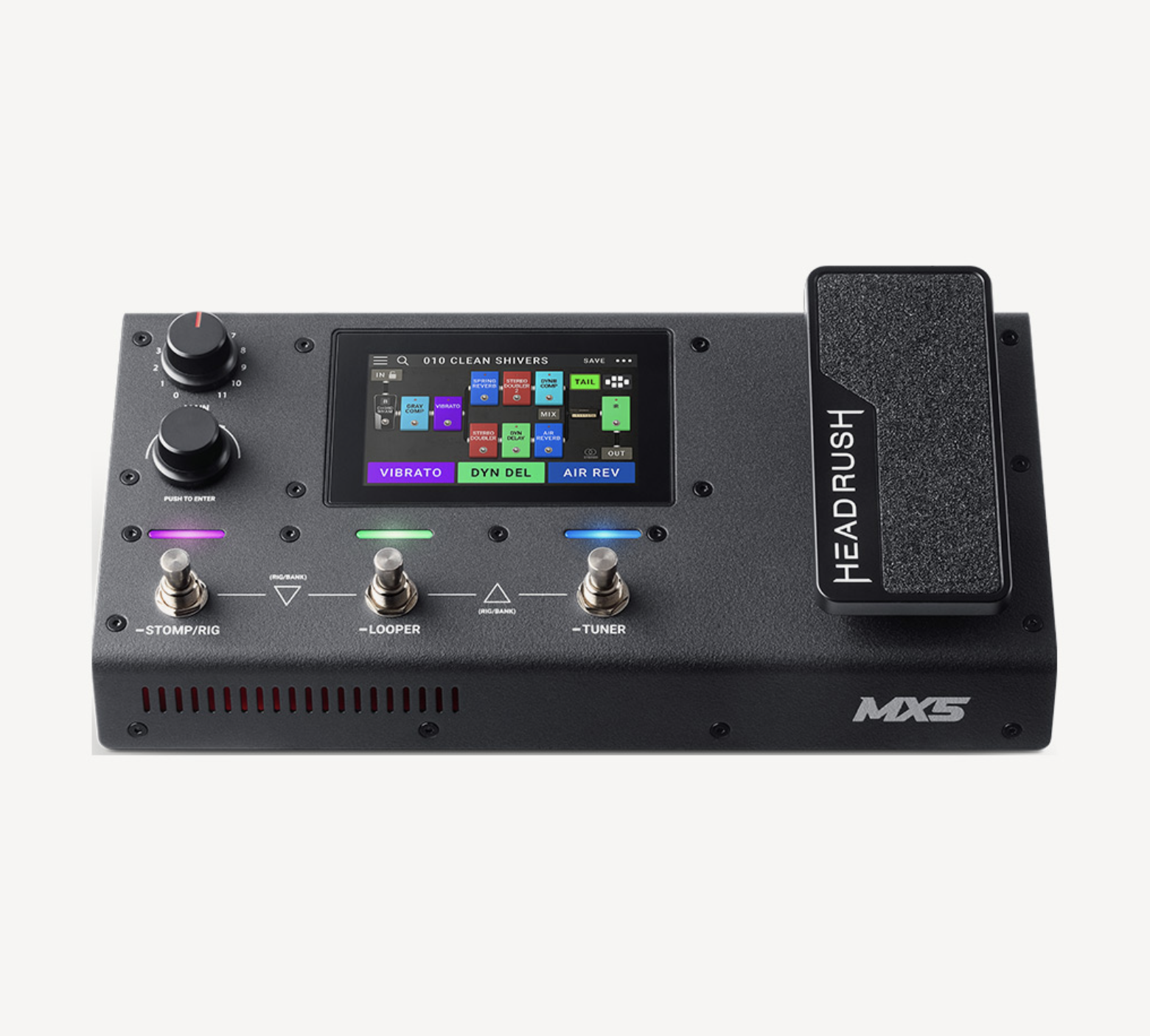

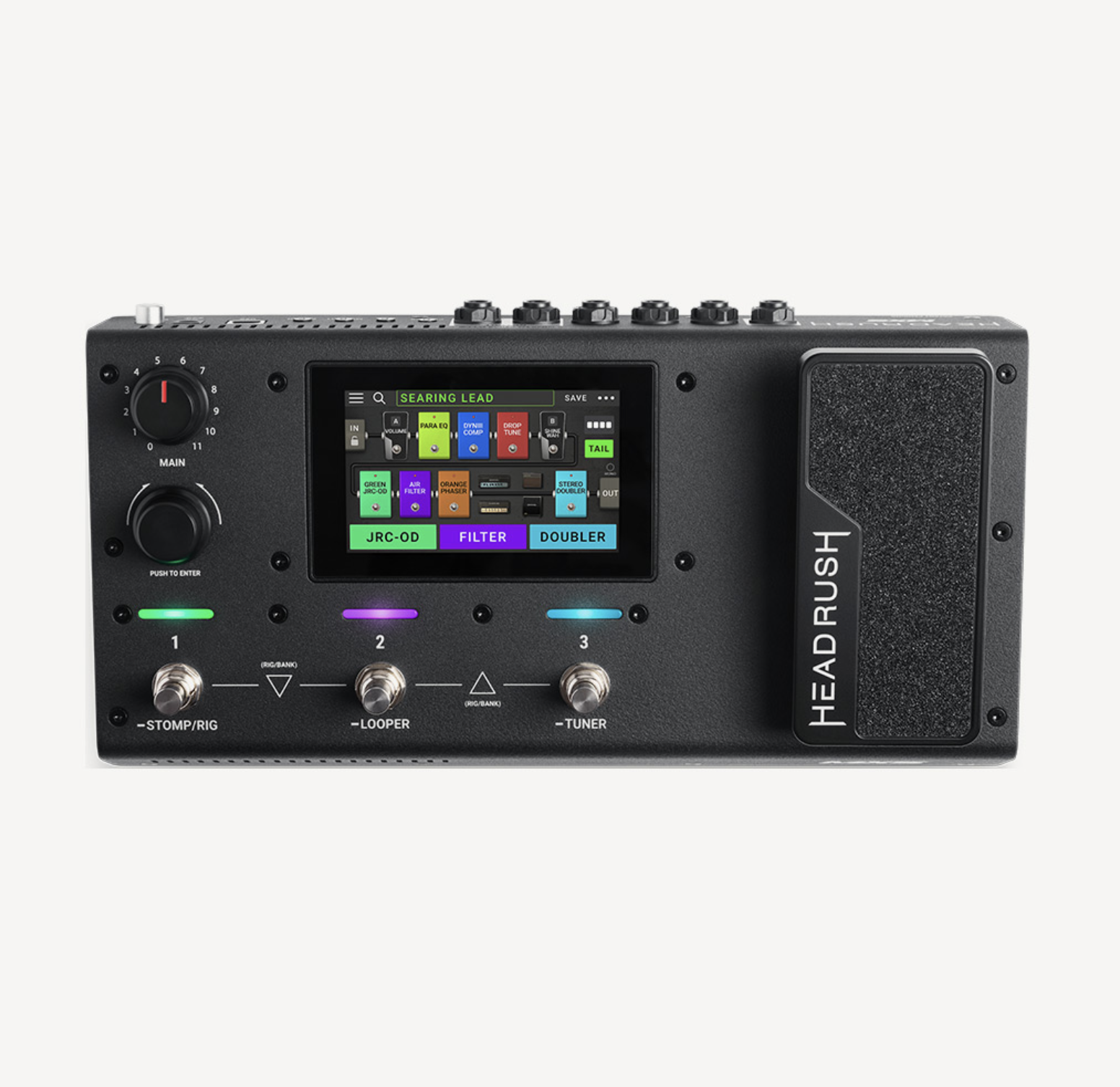

Multi-Effect Pedal for Electric Guitar

• Specially developed DSP system with powerful multicore processing
• Versatile library of realistic and dynamic amp, cabinet, mic and effect models
• Space for numerous user-defined impulse response files
• High-resolution 4″ touch display
• Freehand editing mode for fast live editing
• Looper with functions for saving and loading loops
• Integrated expression pedal with toe switch and adjustable pull strength
• Stereo FX loop
• Recording and re-amping via USB
• Controls: Main, Navigation/Data Encoder
• 3 Footswitches
• Power supply via 12 V DC mains adapter
• Dimensions (W x D x H): 295 x 193 x 70 mm
• Weight: 1.57 kg
• Includes power supply unit

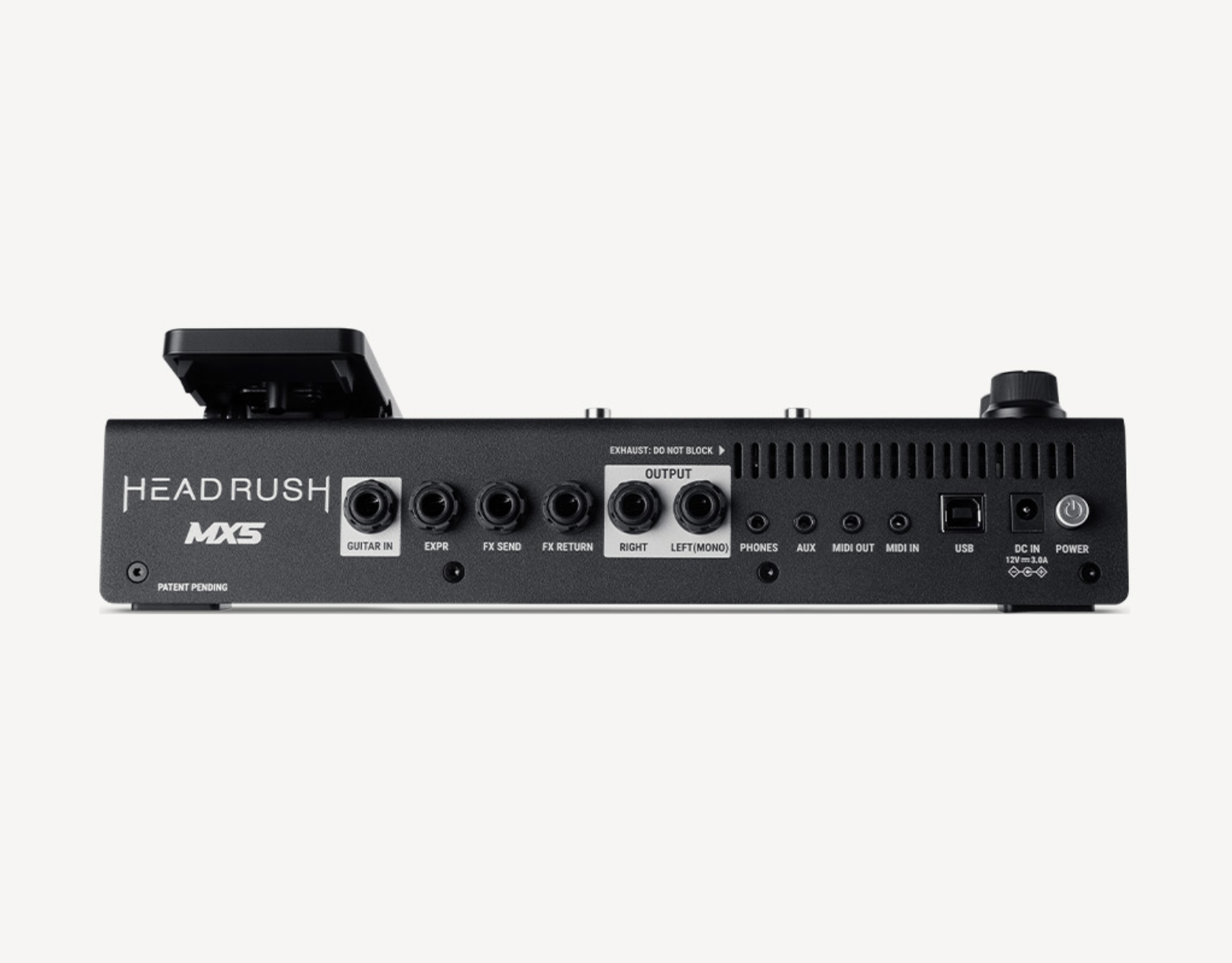

Connections:

• Guitar input: 6.3 mm stereo jack
• FX Loop Send: 6.3 mm stereo jack
• FX Loop Return: 6.3 mm stereo jack
• Stereo output: 2x 6.3 mm stereo jack
• Headphones: 3.5 mm stereo jack
• Aux In: 3.5 mm stereo jack
• MIDI In & Out: 2x 3.5 mm stereo jack
• USB Type-B
• Power supply connection: Barrel connector socket 5.5 x 2.1 mm (pin +, ring -).
